8-bit RISC microcontroller featuring 8KB FLASH memory and 512B RAM. Operates at up to 64MHz with I2C, SPI, and UART interfaces. Includes 17 analog input channels across 2 A/D converters and 25 programmable I/Os. Packaged in a 28-pin SOIC, this lead-free component supports a supply voltage range of 1.8V to 5.5V and operates from -40°C to 125°C.
Frequency16MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC18F23K22-E/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
16MHz
Height
0.093inch
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
0.704inch
Max Frequency
64MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of A/D Converters
2
Number of ADC Channels
17
Number of Bits
8
Number of I/Os
24
Number of I2C Channels
2
Number of Programmable I/O
25
Number of SPI Channels
2
Number of Timers/Counters
7
Number of UART Channels
2
Packaging
Rail/Tube
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F23K22-E/SO Datasheet
Download the complete datasheet for Microchip PIC18F23K22-E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

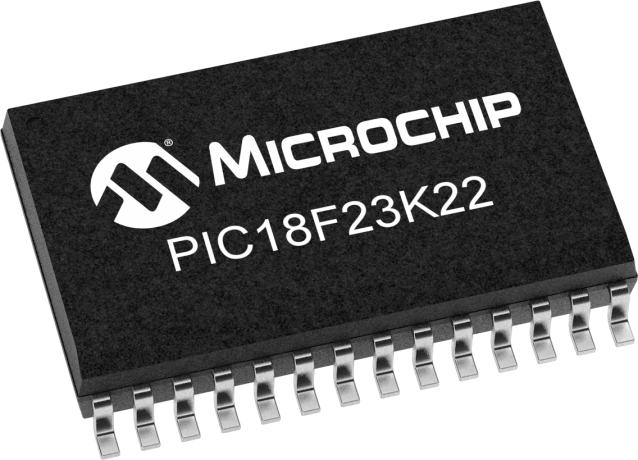

Product Images
