8-bit RISC microcontroller featuring 16KB FLASH memory and 768B RAM. Operates at a maximum frequency of 40MHz with an 8-bit data bus width. Supports I2C, SPI, and UART interfaces, with 23 programmable I/O pins. Includes 2 PWM channels, 4 timers/counters, and 5 ADC channels. Packaged in a 28-pin DIP with an operating temperature range of -40°C to 85°C.
Frequency40MHz
PackageDIP
Quick Jump:
Technical Specifications
Microchip PIC18F242-I/SP technical specifications.
General
Access Time
40us
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Height
3.43mm
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
35.18mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
4.2V
Number of A/D Converters
1
Number of ADC Channels
5
Number of Bits
8
Number of I/Os
23
Number of I2C Channels
1
Number of Programmable I/O
23
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
768B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Width
7.49mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F242-I/SP Datasheet
Download the complete datasheet for Microchip PIC18F242-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

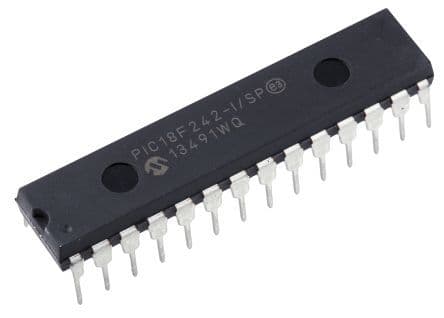

Product Images
