8-bit Flash microcontroller featuring an 8-bit PIC core architecture, operating at a maximum frequency of 48MHz. This surface-mount device offers 16KB of FLASH memory and 768B of RAM, with an 8-bit address and data bus. Integrated peripherals include USB, UART, and USART interfaces, along with 10 ADC channels, 3 timers/counters, and 1 PWM channel. The microcontroller supports a supply voltage range of 4.2V to 5.5V and operates within a temperature range of -40°C to 85°C, packaged in a lead-free SOIC-28 case.
Frequency48MHz
PackageSOIC
Current580uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F2450-I/SO technical specifications.
General
Access Time
48us
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Data Rate
12Mbps
Density
16KB
Frequency
48MHz
Height
2.35mm
Interface
USB, UART, USART
Lead Free
Lead Free
Length
17.9mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
10
Number of Bits
8
Number of I/Os
23
Number of Programmable I/O
23
Number of PWM Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
768B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
580uA
Termination
SMD/SMT
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F2450-I/SO Datasheet
Download the complete datasheet for Microchip PIC18F2450-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

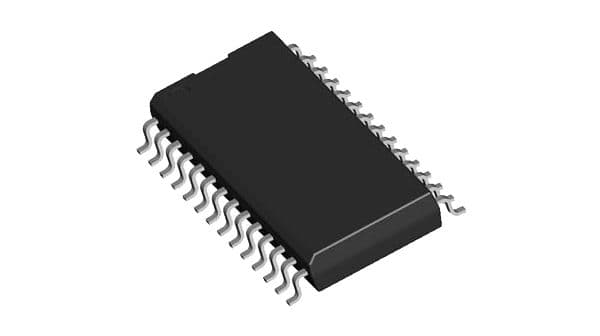

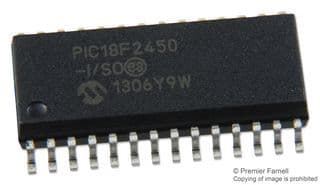

Product Images
