8-bit FLASH microcontroller featuring an 8b data bus and a 40MHz core frequency. Offers 16KB FLASH memory, 768B RAM, and 25 programmable I/Os. Supports I2C, SPI, USART, CAN, and UART interfaces. Includes 4 timers/counters and peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. Packaged in a lead-free, SOIC-28 surface mount case with an operating temperature range of -40°C to 85°C.
Frequency40MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F2480T-I/SO technical specifications.
General
Access Time
40us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Interface
I2C, SPI, USART, CAN, UART
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of I/Os
25
Number of Programmable I/O
25
Number of Timers/Counters
4
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
768B
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F2480T-I/SO Datasheet
Download the complete datasheet for Microchip PIC18F2480T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

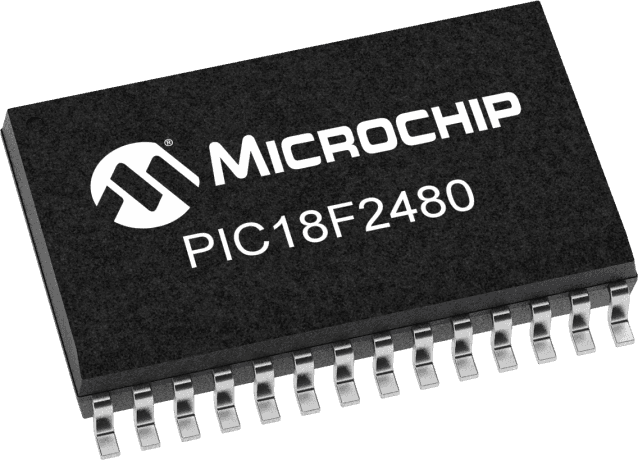

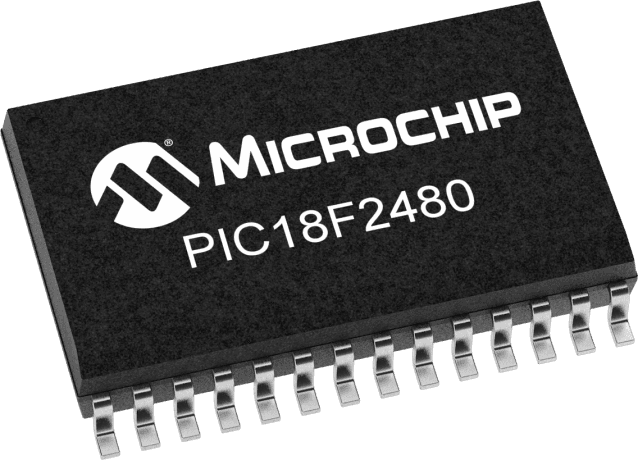

Product Images
