8-bit RISC Flash Microcontroller, operating at up to 40MHz. Features 16KB Flash memory, 1KB RAM, and 21 programmable I/Os. Includes I2C, SPI, UART, and USB interfaces, along with 3 timers/counters and 10 ADC channels. Packaged in a 28-pin SSOP (0.209 inch) for surface mounting, with a voltage range of 2.7V to 3.6V and an operating temperature of -40°C to 85°C. RoHS compliant and lead-free.
Frequency40MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F24J10-I/SS technical specifications.
General
Access Time
40us
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Height
0.073inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
0.413inch
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
10
Number of Bits
8
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18J
Watchdog Timer
Yes
Width
0.22inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F24J10-I/SS Datasheet
Download the complete datasheet for Microchip PIC18F24J10-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

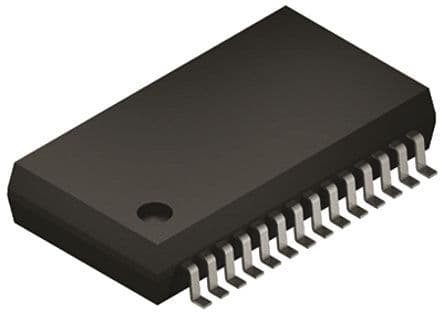

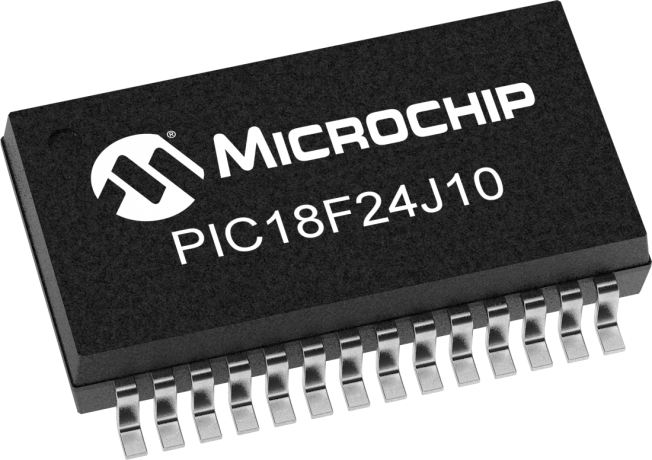

Product Images
