8-bit FLASH microcontroller operating at up to 48MHz. Features 16KB FLASH memory, 3776B RAM, and 16 I/O pins. Includes I2C, SPI, and UART interfaces, 10 ADC channels, and 2 PWM channels. Packaged in a lead-free SOIC-28 surface-mount case. Supports a supply voltage range of 2.15V to 3.6V with an operating temperature range of -40°C to 85°C.
Frequency48MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F24J11-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
48MHz
Height
2.35mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
17.9mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Min Supply Voltage
2.15V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
10
Number of Bits
8
Number of I/Os
16
Number of I2C Channels
2
Number of PWM Channels
2
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
3776B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F24J11-I/SO Datasheet
Download the complete datasheet for Microchip PIC18F24J11-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

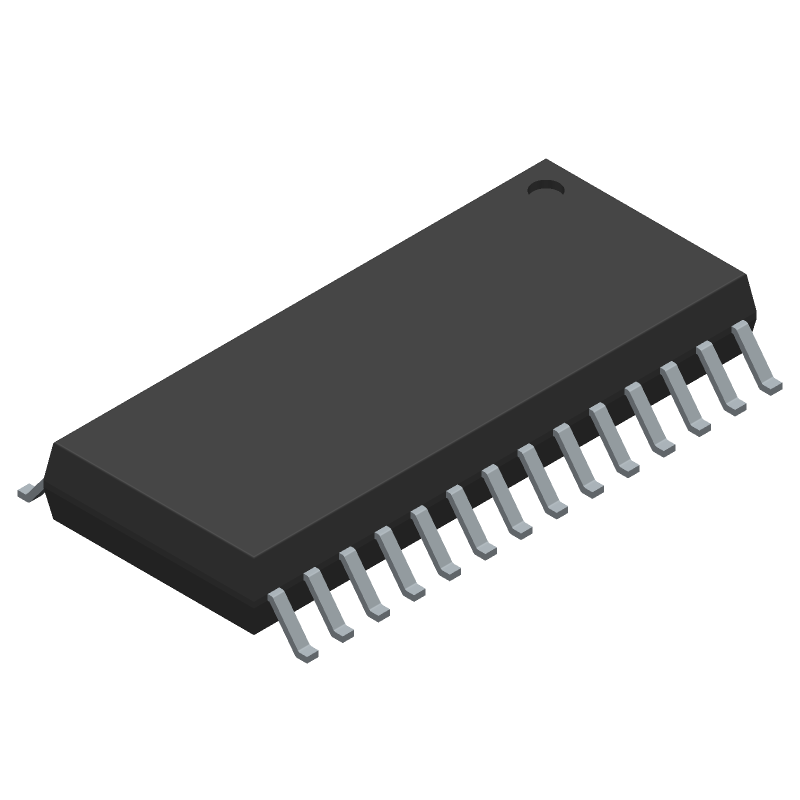

Product Images
