8-bit FLASH microcontroller featuring an 8b data bus and a maximum operating frequency of 48MHz. This surface mount device, housed in an SSOP-28 package with dimensions of 10.5mm length, 5.6mm width, and 1.85mm height, offers 16 I/Os and 3776B of RAM. Integrated peripherals include I2C (2 channels), SPI (2 channels), UART (2 channels), USART, 2 PWM channels, 5 timers/counters, and 10 ADC channels with 1 A/D converter. Operating within a supply voltage range of 2.15V to 3.6V, this RoHS compliant component supports temperatures from -40°C to 85°C.
Frequency48MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications

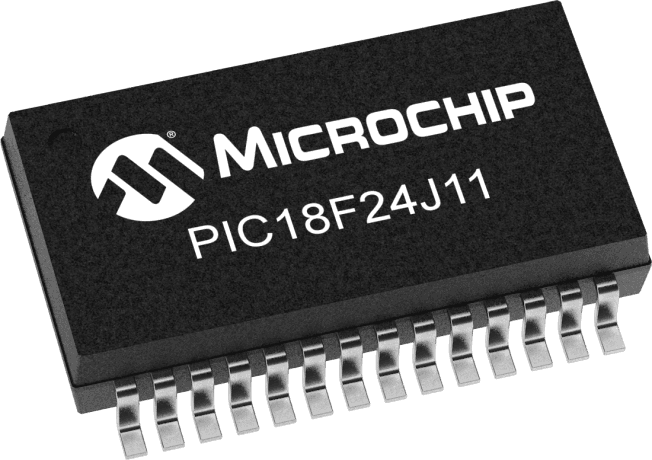

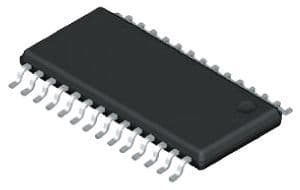

Microchip PIC18F24J11-I/SS technical specifications.
General
| Package/Case | SSOP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 48MHz |
| Height | 1.85mm |
| Interface | I2C, SPI, UART, USART |
| Lead Free | Lead Free |
| Length | 10.5mm |
| Max Frequency | 48MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 3.6V |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 2.15V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 10 |
| Number of Bits | 8 |
| Number of I/Os | 16 |
| Number of I2C Channels | 2 |
| Number of PWM Channels | 2 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 2 |
| Oscillator Type | Internal |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, I2C |
| Radiation Hardening | No |
| RAM Size | 3776B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
| Width | 5.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC18F24J11-I/SS Datasheet
Download the complete datasheet for Microchip PIC18F24J11-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
