8-bit RISC microcontroller featuring a 64MHz core, 16KB FLASH memory, and 768B RAM. This QFN-packaged MCU offers 24 I/Os, including 25 programmable I/O pins, and supports I2C, SPI, and UART interfaces. Integrated peripherals include 7 timers/counters, 5 PWM channels, and 2 A/D converters with 17 channels. Operating from 1.8V to 5.5V, it functions within a -40°C to 85°C temperature range.
Frequency64MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC18F24K22-I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Height
0.95mm
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
6mm
Max Frequency
64MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
2
Number of ADC Channels
17
Number of Bits
8
Number of I/Os
24
Number of I2C Channels
2
Number of Programmable I/O
25
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
7
Number of UART Channels
2
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
768B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F24K22-I/ML Datasheet
Download the complete datasheet for Microchip PIC18F24K22-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

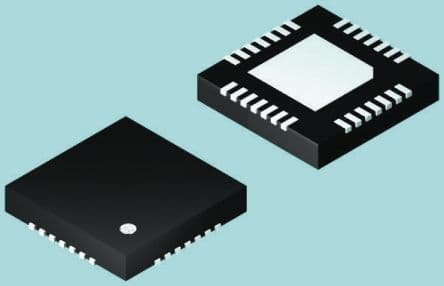

Product Images
