8-bit PIC RISC microcontroller featuring 32KB Flash memory and 1.5KB RAM. Operates at up to 40MHz with an 8-bit address and data bus. Offers 23 programmable I/O pins, supporting I2C, SPI, and UART interfaces. Includes 5 ADC channels, 2 PWM channels, and 4 timers/counters. Packaged in a 28-pin SPDIP, this lead-free component operates from 4.2V to 5.5V and is RoHS compliant.
Frequency40MHz
PackageDIP
Current1.6mA
Quick Jump:
Technical Specifications
Microchip PIC18F252-I/SP technical specifications.
General
Access Time
40us
Address Bus Width
8b
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Height
3.43mm
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
35.18mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
4.2V
Number of ADC Channels
5
Number of Bits
8
Number of I/Os
23
Number of I2C Channels
1
Number of Programmable I/O
23
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
1.5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18F
Supply Current
1.6mA
Watchdog Timer
Yes
Width
7.49mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F252-I/SP Datasheet
Download the complete datasheet for Microchip PIC18F252-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

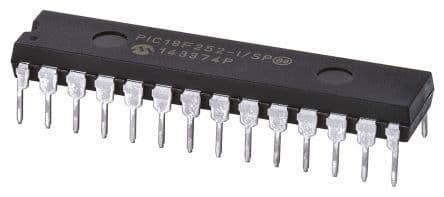

Product Images
