8-bit Flash Microcontroller operating at up to 48MHz. Features 32KB Flash memory, 2KB RAM, and 24 programmable I/O pins. Integrated peripherals include I2C, SPI, USB, UART, and two PWM channels. This surface mount device is housed in a 28-pin SOIC package with a temperature range of -40°C to 85°C.
Frequency48MHz
PackageSOIC
Current1.1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F2550-I/SO technical specifications.
General
Access Time
48us
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Density
32KB
Frequency
48MHz
Height
2.35mm
Interface
I2C, SPI, USB, UART, USART
Lead Free
Lead Free
Length
17.9mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
10
Number of Bits
8
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
24
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1.1mA
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F2550-I/SO Datasheet
Download the complete datasheet for Microchip PIC18F2550-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

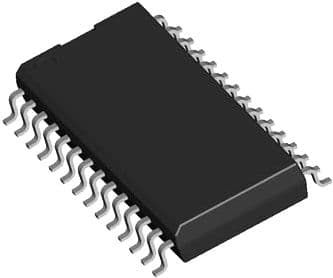

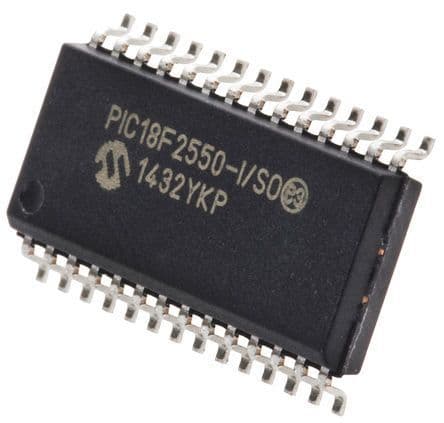

Product Images
