8-bit FLASH microcontroller featuring an 8-bit PIC core architecture, operating at a maximum frequency of 40MHz. This surface mount device offers 32KB of FLASH memory and 1.5KB of RAM, with 25 programmable I/O pins. Integrated peripherals include I2C, SPI, CAN, and UART interfaces, along with 8 ADC channels and 4 timers/counters. The component is housed in a 6mm x 6mm QFN package, with a height of 0.95mm, and operates within a voltage range of 2V to 5.5V.
Frequency40MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F2580-I/ML technical specifications.
General
Access Time
40us
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Density
32KB
Frequency
40MHz
Height
0.95mm
Interface
I2C, SPI, CAN, UART, USART
Lead Free
Lead Free
Length
6mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
25
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
1.5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F2580-I/ML Datasheet
Download the complete datasheet for Microchip PIC18F2580-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

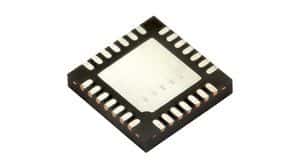

Product Images
