8-bit microcontroller featuring 32KB FLASH memory and 1.5KB RAM, operating at up to 40MHz. This surface mount device offers 25 programmable I/O pins and supports I2C, SPI, CAN, and UART interfaces. Integrated peripherals include a watchdog timer, brown-out detect, and 8 ADC channels. Packaged in a lead-free SOIC-28 case, it operates from 4.2V to 5.5V.
Frequency40MHz
PackageSOIC
Current2.3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F2580-I/SO technical specifications.
General
Access Time
40us
Address Bus Width
8b
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Density
32KB
Frequency
40MHz
Height
2.35mm
Interface
I2C, SPI, CAN, UART, USART
Lead Free
Lead Free
Length
17.9mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
25
Number of I2C Channels
1
Number of Programmable I/O
25
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Operating Frequency
40Hz
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
1.5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2.3mA
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F2580-I/SO Datasheet
Download the complete datasheet for Microchip PIC18F2580-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

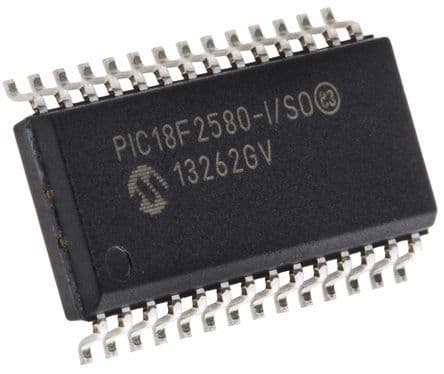

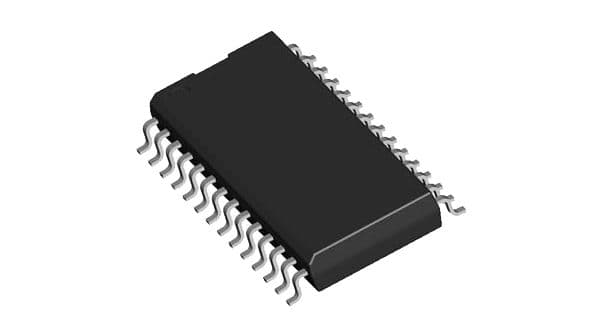

Product Images
