8-bit RISC microcontroller featuring 64MHz operation, 32KB FLASH memory, and 1.5KB RAM. This QFN-packaged MCU offers 24 I/O pins, including 25 programmable I/Os, and supports I2C, SPI, and UART interfaces. Integrated peripherals include 2 A/D converters with 19 channels, 5 PWM channels, and 7 timers/counters. Operating from 1.8V to 5.5V, this lead-free component is RoHS compliant and suitable for temperatures from -40°C to 85°C.
Frequency64MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC18F25K22-I/ML technical specifications.
General
Address Bus Width
8b
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Height
0.037inch
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
0.236inch
Max Frequency
64MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
2
Number of ADC Channels
19
Number of Bits
8
Number of I/Os
24
Number of I2C Channels
2
Number of Programmable I/O
25
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
7
Number of UART Channels
2
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
1.5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
0.236inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F25K22-I/ML Datasheet
Download the complete datasheet for Microchip PIC18F25K22-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

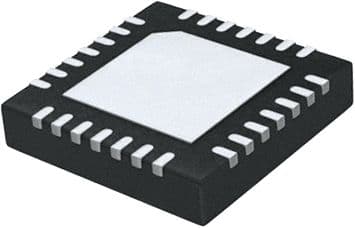

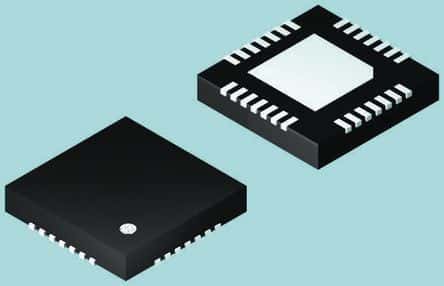

Product Images
