8-bit CMOS microcontroller featuring a PIC CPU core, operating at up to 64MHz. This 28-pin DIP package offers 32KB FLASH memory, 3648B RAM, and 24 programmable I/O pins. Integrated peripherals include I2C, SPI, dual UART, and CAN interfaces, alongside 5 timers, 8 ADC channels, and PWM capabilities. Designed for a wide operating temperature range of -40°C to 125°C with supply voltages from 1.8V to 5.5V.
Frequency64MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC18F25K80-E/SP technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Height
0.15inch
Interface
I2C, SPI, USART, UART, CAN
Length
1.4inch
Max Frequency
64MHz
Max Operating Temperature
125°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
24
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
3648B
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F25K80-E/SP Datasheet
Download the complete datasheet for Microchip PIC18F25K80-E/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

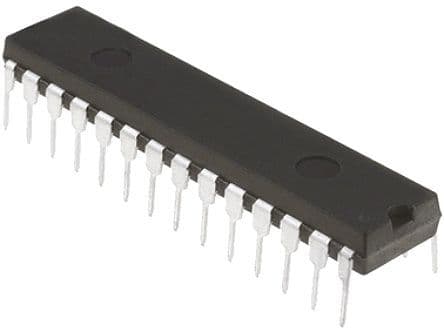

Product Images
