8-bit CMOS microcontroller featuring a PIC CPU architecture and 64MHz maximum operating frequency. This integrated circuit offers 32KB of FLASH memory, 3648B of RAM, and 24 programmable I/O pins. Integrated peripherals include I2C, SPI, USART, UART, LIN, and CAN interfaces, along with 8 ADC channels and 5 PWM channels. Operates from 1.8V to 5.5V supply voltage with a temperature range of -40°C to 85°C. Packaged in a 28-pin SOIC.
Frequency64MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC18F25K80-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Height
2.35mm
Interface
I2C, SPI, USART, UART, LIN, CAN
Lead Free
Lead Free
Length
17.9mm
Max Frequency
64MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
24
Number of I2C Channels
1
Number of Programmable I/O
24
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
3648B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F25K80-I/SO Datasheet
Download the complete datasheet for Microchip PIC18F25K80-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

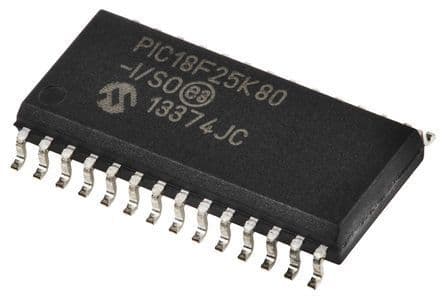

Product Images
