8-bit microcontroller featuring 64KB FLASH memory and 3776B RAM, operating at up to 48MHz. This surface mount device offers 16 I/Os, multiple communication interfaces including I2C, SPI, and UART/USART, and 10 ADC channels with one A/D converter. Includes 2 PWM channels, 5 timers/counters, and integrated peripherals like Brown-out Detect/Reset, POR, and WDT. Packaged in a 6x6mm QFN with a height of 0.95mm, it supports a supply voltage range of 2.15V to 3.6V and operates from -40°C to 85°C.
Frequency48MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F26J11-I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
48MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
6mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
2.15V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
10
Number of Bits
8
Number of I/Os
16
Number of I2C Channels
2
Number of PWM Channels
2
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
3776B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F26J11-I/ML Datasheet
Download the complete datasheet for Microchip PIC18F26J11-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

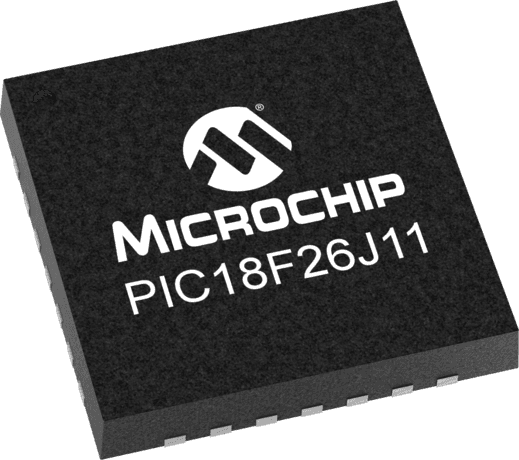

Product Images
