8-bit FLASH microcontroller featuring an 8b data bus width and operating at up to 48MHz. This QFN EP packaged MCU offers 64KB of FLASH memory and 3760B of RAM, with 23 I/Os including 2x I2C, 2x SPI, and USART/UART/LIN interfaces. Integrated peripherals include 10 ADC channels and 8 timers/counters, with brown-out detect, POR, PWM, and WDT functionality. Designed for a 2.15V to 3.6V supply voltage, it operates from -40°C to 85°C.
Frequency48MHz
PackageQFN EP
Quick Jump:
Technical Specifications
Microchip PIC18F26J13-I/ML technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
8b
Frequency
48MHz
Height
0.95mm
Interface
I2C, SPI, USART, UART, LIN
Length
6mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH
Min Supply Voltage
2.15V
Number of ADC Channels
10
Number of I/Os
23
Number of I2C Channels
2
Number of Programmable I/O
3
Number of SPI Channels
2
Number of Timers/Counters
8
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
3760B
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F26J13-I/ML Datasheet
Download the complete datasheet for Microchip PIC18F26J13-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

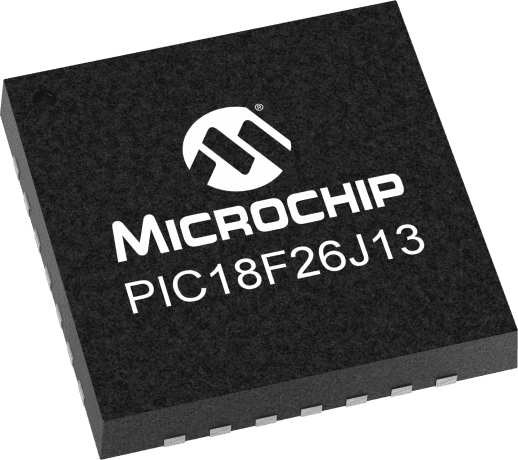

Product Images
