8-bit Flash Microcontroller featuring an 8b data bus and a 48MHz core frequency. This surface mount device offers 64KB of FLASH memory and 3776B of RAM, with 16 I/O pins. Integrated peripherals include I2C (2 channels), SPI (2 channels), UART (2 channels), USART, USB, and 2 PWM channels. Operating from 2.15V to 3.6V, it supports an extended temperature range of -40°C to 85°C.
Frequency48MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F26J50-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
8b
Frequency
48MHz
Height
1.85mm
Interface
I2C, SPI, USB, UART, USART
Lead Free
Lead Free
Length
10.5mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
2.15V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
10
Number of Bits
8
Number of I/Os
16
Number of I2C Channels
2
Number of PWM Channels
2
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
3776B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 18J
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F26J50-I/SS Datasheet
Download the complete datasheet for Microchip PIC18F26J50-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

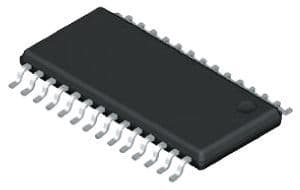

Product Images
