8-bit FLASH microcontroller featuring an 8b data bus width and a maximum frequency of 48MHz. This surface mount device offers 64KB of FLASH memory and 3776B of RAM. Integrated peripherals include I2C, SPI, USB, UART, USART, Brown-out Detect/Reset, POR, PWM, WDT, and DMA. Operating within a voltage range of 2.15V to 3.6V, it supports a temperature range of -40°C to 85°C.
Frequency48MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F26J50T-I/ML technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
8b
Frequency
48MHz
Interface
I2C, SPI, USB, UART, USART
Lead Free
Lead Free
Max Frequency
48MHz
Max Operating Temperature
85°C
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Min Supply Voltage
2.15V
Mount
Surface Mount
Number of I/Os
16
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
3776B
RoHS Compliant
Yes
Series
PIC® XLP™ 18J
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F26J50T-I/ML Datasheet
Download the complete datasheet for Microchip PIC18F26J50T-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

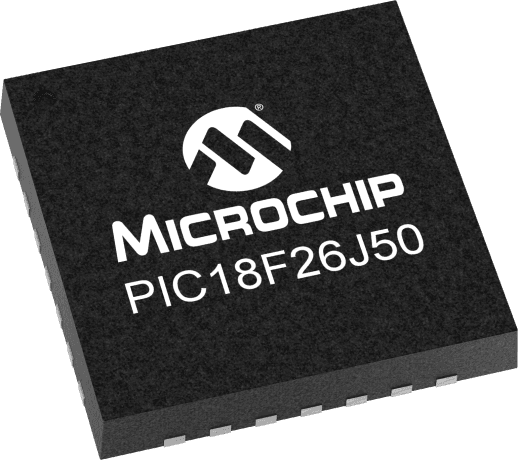

Product Images
