8-bit FLASH microcontroller operating at 40MHz. Features 8KB flash memory, 512B RAM, and 36 I/O pins. Supports I2C, SPI, USART, UART, and USB interfaces. Includes 13 A/D channels, 5 PWM channels, and 5 timers/counters. Packaged in a 44-pin TQFP with dimensions of 10mm x 10mm x 1.05mm. Operates from -40°C to 85°C with a supply voltage range of 4.2V to 5.5V.
Frequency40MHz
PackageTQFP
Current400uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F4320-I/PT technical specifications.
General
Access Time
40us
Address Bus Width
8b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Density
8KB
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Lead Pitch
0.5mm
Length
10mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
13
Number of Bits
8
Number of I/Os
36
Number of I2C Channels
1
Number of Programmable I/O
36
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18F
Supply Current
400uA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F4320-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F4320-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

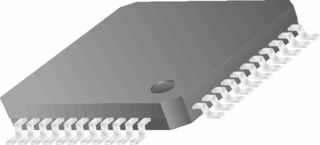

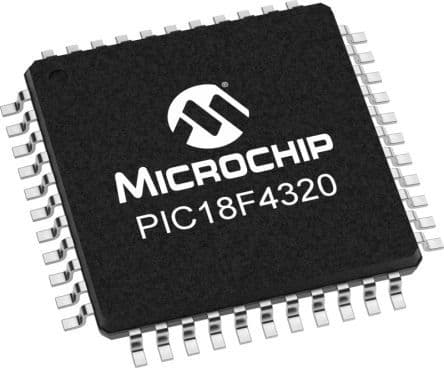

Product Images
