8-bit RISC microcontroller featuring 8KB FLASH memory and 512B RAM. Operates at up to 16MHz with a 1.8V to 5.5V supply voltage range. Offers 35 I/O pins, including 36 programmable I/O, and supports I2C, SPI, and UART interfaces. Includes 7 timers/counters, 2 A/D converters with 28 channels, and integrated peripherals like PWM and WDT. Packaged in a VQFN surface mount format, this RoHS compliant component is designed for operation between -40°C and 85°C.
Frequency16MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F43K22T-I/ML technical specifications.
General
Package/Case
VQFN
Core Architecture
PIC
Data Bus Width
8b
Height
0.037inch
Interface
I2C, SPI, USART, UART
Length
0.314inch
Max Frequency
16MHz
Max Operating Temperature
85°C
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of A/D Converters
2
Number of ADC Channels
28
Number of Bits
8
Number of I/Os
35
Number of I2C Channels
2
Number of Programmable I/O
36
Number of SPI Channels
2
Number of Timers/Counters
7
Number of UART Channels
2
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Watchdog Timer
Yes
Width
0.315inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F43K22T-I/ML Datasheet
Download the complete datasheet for Microchip PIC18F43K22T-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

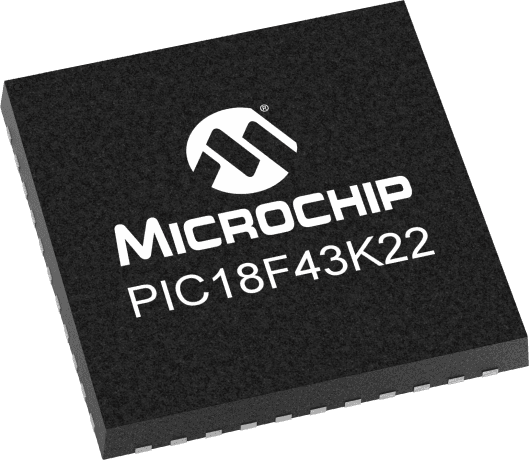

Product Images
