8-bit FLASH microcontroller featuring an 8b data bus width and a maximum operating frequency of 48MHz. This surface mount device, housed in a TQFP package (10mm x 10mm, 1.05mm height), offers 34 I/Os, 13 ADC channels, and 5 timers/counters. Integrated peripherals include I2C (2 channels), SPI (2 channels), USB, UART, USART, Brown-out Detect/Reset, POR, PWM, WDT, and DMA. It operates with a supply voltage range of 2.15V to 3.6V and has 16KB of FLASH memory and 3776B of RAM.
Frequency48MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F44J50-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
48MHz
Height
1.05mm
Interface
I2C, SPI, USB, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.15V
Mount
Surface Mount
Number of ADC Channels
13
Number of I/Os
34
Number of I2C Channels
2
Number of SPI Channels
2
Number of Timers/Counters
5
Operating Supply Voltage
2.75V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
3776B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 18J
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F44J50-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F44J50-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

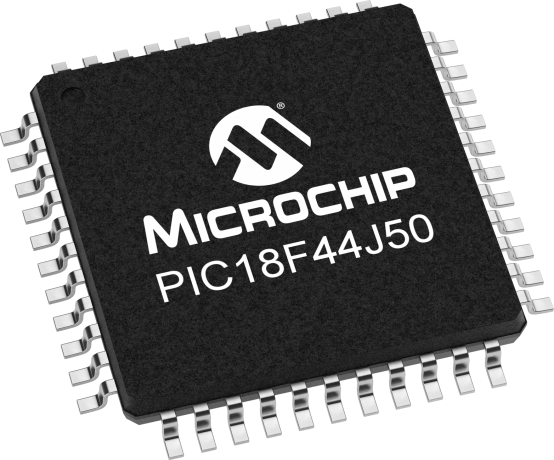

Product Images
