8-bit PIC RISC microcontroller featuring 32KB Flash memory and 2KB RAM. Operates at up to 48MHz with an 8-bit address and data bus. Offers 35 programmable I/Os, multiple interfaces including I2C, SPI, USB, and UART, and 13 A/D channels. Packaged in a 40-pin PDIP for through-hole mounting, this RoHS compliant component supports a supply voltage range of 4.2V to 5.5V and operates from -40°C to 85°C.
Frequency48MHz
PackagePDIP
Current1.1mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC18F4550-I/P technical specifications.
General
Access Time
48us
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Density
32KB
Frequency
48MHz
Height
0.195inch
Interface
I2C, SPI, USB, UART, USART
Lead Free
Lead Free
Length
53.21mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.2V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
13
Number of Bits
8
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
35
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1.1mA
Watchdog Timer
Yes
Width
0.58inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F4550-I/P Datasheet
Download the complete datasheet for Microchip PIC18F4550-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

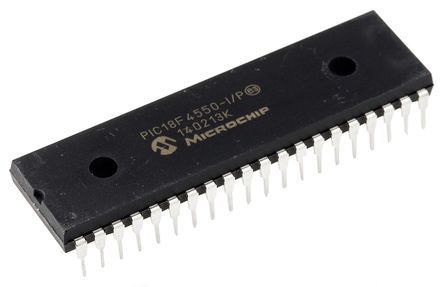

Product Images
