8-bit FLASH microcontroller featuring an 8b data bus and operating at up to 48MHz. This through-hole mounted device offers 32KB of FLASH memory, 2KB of RAM, and 35 programmable I/O pins. Integrated peripherals include I2C, SPI, USB, UART, USART interfaces, 13 A/D converter channels, and 2 PWM channels. The microcontroller supports a supply voltage range of 4.2V to 5.5V and operates from -40°C to 85°C.
Frequency48MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC18F4553-I/P technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Density
32KB
Frequency
48MHz
Height
0.195inch
Interface
I2C, SPI, USB, UART, USART
Lead Free
Lead Free
Length
53.21mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
4.2V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
13
Number of Bits
8
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
35
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Through Hole
Watchdog Timer
Yes
Width
0.58inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F4553-I/P Datasheet
Download the complete datasheet for Microchip PIC18F4553-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

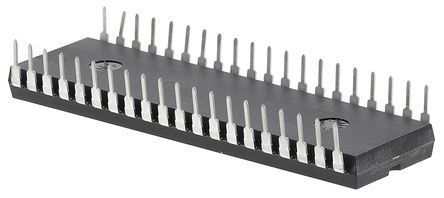

Product Images
