8-bit Flash microcontroller featuring a 40MHz core frequency and 32KB memory density. This PIC microcontroller offers 1.5KB RAM, 36 I/O pins, and supports I2C, SPI, USART, UART, and CAN interfaces. Integrated peripherals include 5 PWM channels, 4 timers/counters, and 11 A/D converter channels. Packaged in a 40-pin PDIP with through-hole mounting, it operates from 4.2V to 5.5V and has a temperature range of -40°C to 85°C.
Frequency40MHz
PackagePDIP
Current400uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC18F4580-I/P technical specifications.
General
Access Time
40us
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Density
32KB
Frequency
40MHz
Height
0.195inch
Interface
I2C, SPI, USART, UART, CAN
Lead Free
Lead Free
Length
53.21mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
4.2V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
36
Number of I2C Channels
1
Number of Programmable I/O
36
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
1.5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18F
Supply Current
400uA
Watchdog Timer
Yes
Width
0.58inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F4580-I/P Datasheet
Download the complete datasheet for Microchip PIC18F4580-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

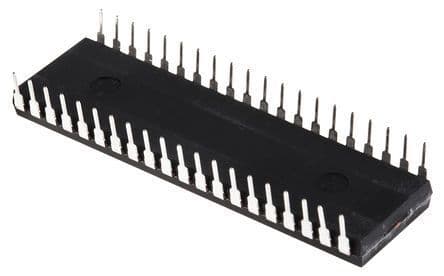

Product Images
