8-bit PIC RISC microcontroller featuring 48KB Flash memory and 3.25KB RAM. Operates at up to 40MHz with an 8-bit data bus. Offers I2C, SPI, and UART/USART interfaces, 36 I/Os, and 4 timers. Designed for automotive applications with a 4.2V to 5.5V operating voltage and a wide temperature range of -40°C to 150°C. Includes peripherals like Brown-out Detect/Reset, POR, PWM, and WDT.
Frequency40MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC18F4585-H/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
48KB
Memory Type
FLASH
Min Supply Voltage
4.2V
Number of I/Os
36
Number of Programmable I/O
44
Number of Timers/Counters
4
Operating Supply Voltage
5V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
3.25KB
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip PIC18F4585-H/ML Datasheet
Download the complete datasheet for Microchip PIC18F4585-H/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

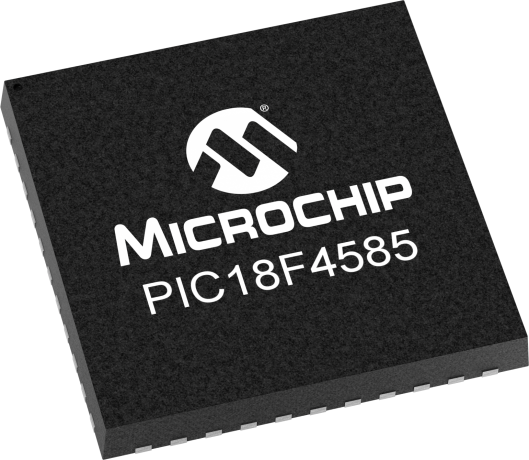

Product Images
