Microchip
PIC18F45K20T-I/ML
8-BIT, FLASH, 64 MHz, MICROCONTROLLER, PQCC44, 8 X 8 MM, LEAD FREE, PLASTIC, QFN-44
Frequency64MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F45K20T-I/ML technical specifications.
General
Package/Case
QFN EP
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Interface
I2C, SPI, UART, USART
Max Frequency
64MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Programmable I/O
36
Number of Timers/Counters
4
Package Quantity
1600
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
1.5KB
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F45K20T-I/ML Datasheet
Download the complete datasheet for Microchip PIC18F45K20T-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

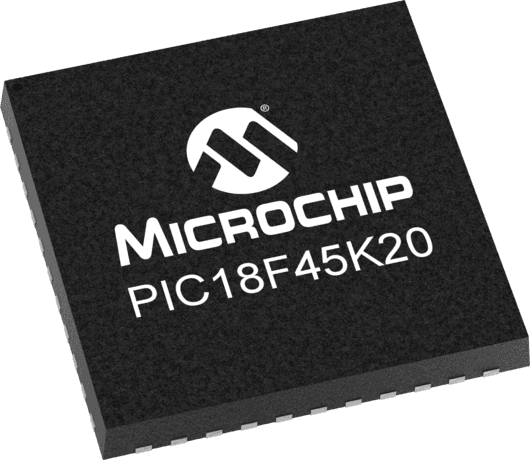

Product Images
