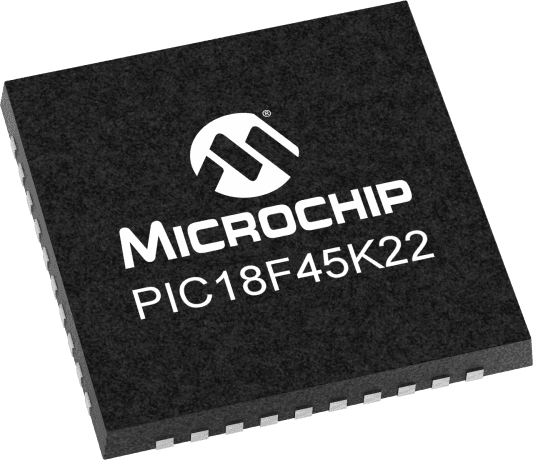

The PIC18F45K22-E/MV is a 32KB FLASH PIC microcontroller with an 8-bit data bus and a maximum operating frequency of 64MHz. It operates over a temperature range of -40°C to 125°C and has a maximum power dissipation of 1W. The device is packaged in a lead-free TQFP-44 package and is compliant with RoHS regulations. It features 35 I/Os, 7 timers/counters, and a watchdog timer, as well as peripherals such as a power-on reset, pulse-width modulation, and high-low voltage detection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip PIC18F45K22-E/MV datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TQFP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 16MHz |
| Interface | I2C, SPI, USART, UART |
| Lead Free | Lead Free |
| Max Frequency | 64MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 32KB |
| Memory Type | FLASH |
| Min Supply Voltage | 1.8V |
| Number of I/Os | 35 |
| Number of Programmable I/O | 36 |
| Number of Timers/Counters | 7 |
| Packaging | Rail/Tube |
| Peripherals | POR, PWM, HLVD |
| Radiation Hardening | No |
| RAM Size | 1.5KB |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
| RoHS | Compliant |
