8-bit FLASH microcontroller featuring an 8b data bus and a 40MHz maximum operating frequency. This surface mount device offers 64KB of FLASH memory and 3986B of RAM, with 36 programmable I/Os. Integrated peripherals include I2C, SPI, and UART/USART interfaces, along with 4 timers/counters and PWM capabilities. Operating within a supply voltage range of 4.2V to 5.5V, this RoHS compliant microcontroller supports a temperature range of -40°C to 125°C.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F4620-E/PT technical specifications.
General
Access Time
40us
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
40MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of ADC Channels
13
Number of I/Os
36
Number of I2C Channels
1
Number of Programmable I/O
36
Number of SPI Channels
1
Number of Timers/Counters
4
Package Quantity
160
Packaging
Tray
Peripherals
PWM, I2C
Radiation Hardening
No
RAM Size
3986B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F4620-E/PT Datasheet
Download the complete datasheet for Microchip PIC18F4620-E/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

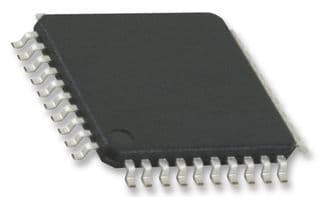

Product Images
