8-bit RISC microcontroller featuring 40MHz clock speed and 64KB FLASH memory. This surface mount device offers 3.25KB RAM, 36 I/O pins, and supports I2C, SPI, CAN, and UART interfaces. Integrated peripherals include 11 ADC channels, 2 PWM channels, and 4 timers/counters. Operating voltage range is 4.2V to 5.5V, with an operating temperature range of -40°C to 85°C.
Frequency40MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F4680-I/ML technical specifications.
General
Access Time
40us
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Height
0.95mm
Interface
I2C, SPI, CAN, UART, USART
Lead Free
Lead Free
Length
8mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
36
Number of I2C Channels
1
Number of Programmable I/O
44
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
4
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
3.25KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
8mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F4680-I/ML Datasheet
Download the complete datasheet for Microchip PIC18F4680-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

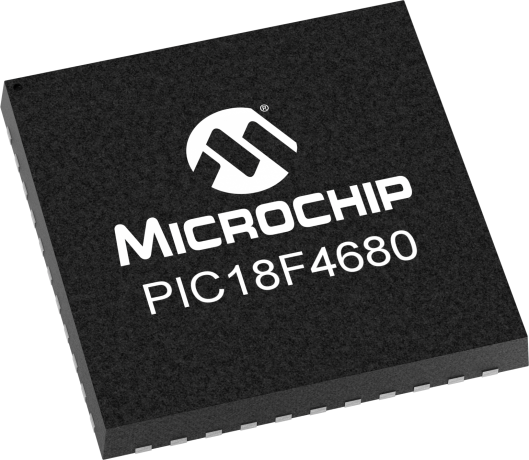

Product Images
