8-bit FLASH microcontroller featuring an 8-bit PIC core architecture, operating at up to 40MHz. This surface mount device offers 96KB of FLASH memory and 3.25KB of RAM, with 44 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, USART, and CAN interfaces, along with 4 timers/counters, Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Designed for a 4.5V to 5.5V operating supply voltage, it functions across a -40°C to 85°C temperature range.
Frequency40MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F4685T-I/ML technical specifications.
General
Access Time
40us
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Interface
I2C, SPI, UART, USART, CAN
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
96KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Programmable I/O
44
Number of Timers/Counters
4
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
3.25KB
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F4685T-I/ML Datasheet
Download the complete datasheet for Microchip PIC18F4685T-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

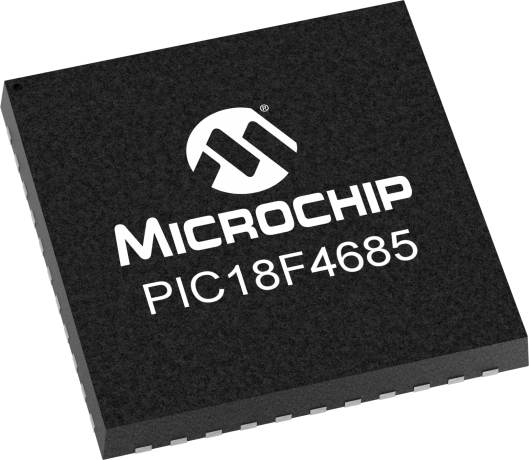

Product Images
