8-bit RISC microcontroller featuring 64KB FLASH memory and 3896B RAM. Operates at up to 64MHz with a 16MHz base frequency. Offers 35 I/O pins, including 36 programmable I/O, and supports I2C, SPI, and UART interfaces. Packaged in a 44-pin TQFP with dimensions of 10mm x 10mm x 1.05mm. Operates within a supply voltage range of 1.8V to 5.5V and a temperature range of -40°C to 125°C. Includes 28 ADC channels and 7 timers/counters.
Frequency16MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC18F46K22-E/PT technical specifications.
General
| Package/Case | TQFP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 16MHz |
| Height | 1.05mm |
| Interface | I2C, SPI, USART, UART |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Frequency | 64MHz |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 64KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of ADC Channels | 28 |
| Number of I/Os | 35 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 36 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 7 |
| Number of UART Channels | 2 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 3896B |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC18F46K22-E/PT Datasheet
Download the complete datasheet for Microchip PIC18F46K22-E/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

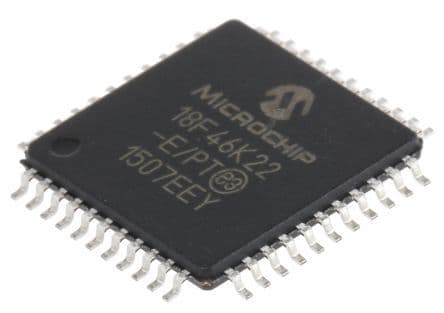

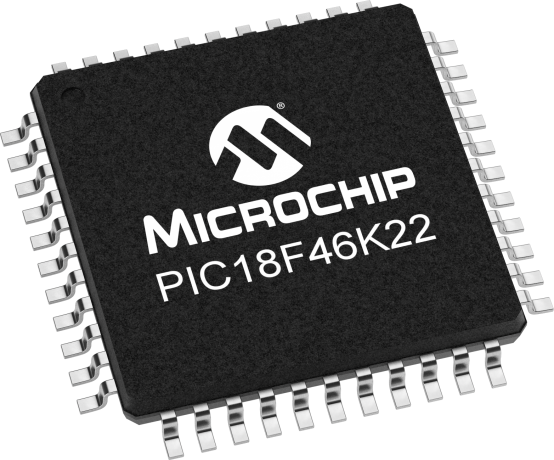

Product Images
