8-bit RISC microcontroller featuring 64KB FLASH memory and 3896B RAM. Operates at a maximum frequency of 64MHz with an 8-bit data bus width. Offers multiple interfaces including I2C, SPI, USART, and UART. Includes 7 timers/counters and 35 I/O pins, with 36 programmable. Packaged in a TQFP with a wide operating temperature range of -40°C to 85°C.
Frequency16MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC18F46K22T-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
16MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
64MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
64KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of I/Os
35
Number of Programmable I/O
36
Number of Timers/Counters
7
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
3896B
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F46K22T-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F46K22T-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

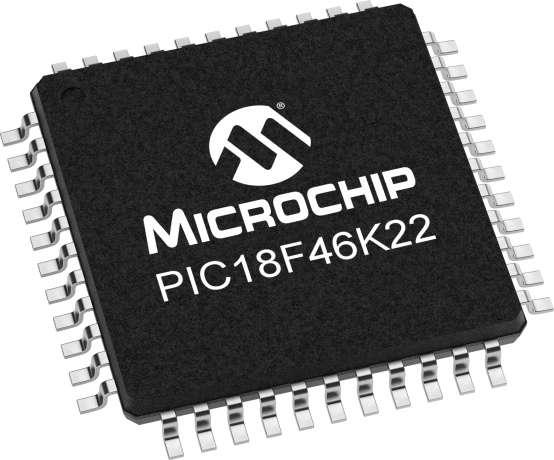

Product Images
