8-bit CMOS microcontroller featuring a PIC CPU core, operating at up to 64MHz. This PDIP packaged MCU offers 64KB of FLASH memory and 3648B of RAM, with 35 programmable I/O pins. Integrated peripherals include I2C, SPI, dual UART, LIN, and CAN interfaces, along with 5 PWM channels and 5 timers. It supports a supply voltage range of 1.8V to 5.5V and operates from -40°C to 85°C.
Frequency64MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC18F46K80-I/P technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Height
0.195inch
Interface
I2C, SPI, USART, UART, LIN, CAN
Lead Free
Lead Free
Length
2.095inch
Max Frequency
64MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
64KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
35
Number of I2C Channels
1
Number of Programmable I/O
35
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
3648B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Watchdog Timer
Yes
Width
0.58inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F46K80-I/P Datasheet
Download the complete datasheet for Microchip PIC18F46K80-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

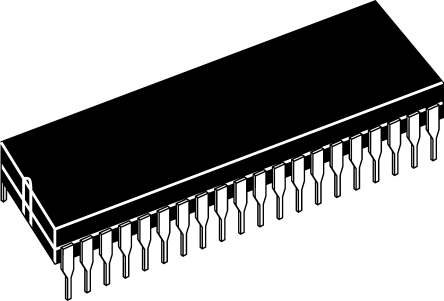

Product Images
