8-bit Flash microcontroller operating at up to 48MHz, featuring an 8-bit PIC core architecture. This QFN-packaged IC offers 128KB of FLASH memory and 3.8KB of RAM, with 33 I/O pins including 22 programmable. Integrated peripherals include I2C, SPI, USART, USB, UART, and LIN interfaces, along with 8 timers/counters and 13 A/D converter channels. Designed for a supply voltage range of 2.15V to 3.6V, this lead-free component operates from -40°C to 85°C.
Frequency48MHz
PackageQFN
Current580uA
Quick Jump:
Technical Specifications

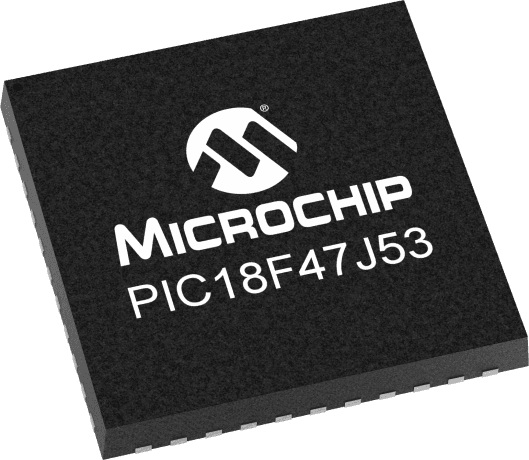

Microchip PIC18F47J53-I/ML technical specifications.
General
Address Bus Width
8b
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
48MHz
Height
0.95mm
Interface
I2C, SPI, USART, USB, UART, LIN
Lead Free
Lead Free
Length
8mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
2.15V
Number of A/D Converters
1
Number of ADC Channels
13
Number of Bits
8
Number of I/Os
33
Number of I2C Channels
2
Number of Programmable I/O
22
Number of SPI Channels
2
Number of Timers/Counters
8
Number of UART Channels
2
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
3.8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 18J
Supply Current
580uA
Watchdog Timer
Yes
Width
8mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F47J53-I/ML Datasheet
Download the complete datasheet for Microchip PIC18F47J53-I/ML to view detailed technical specifications.
