8-bit FLASH microcontroller featuring an 8b data bus and 40MHz max frequency. This surface mount device offers 32KB memory density, 2KB RAM, and 51 programmable I/Os. Integrated peripherals include I2C, SPI, UART, USART interfaces, 12 ADC channels, 2 PWM channels, and 4 timers/counters. Packaged in a 64-pin TQFP (10x10mm, 1.05mm height), it operates from 2V to 3.6V, with a temperature range of -40°C to 85°C.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F65J90-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Density
32KB
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
12
Number of I/Os
51
Number of I2C Channels
1
Number of Programmable I/O
51
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, LCD, I2C
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F65J90-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F65J90-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

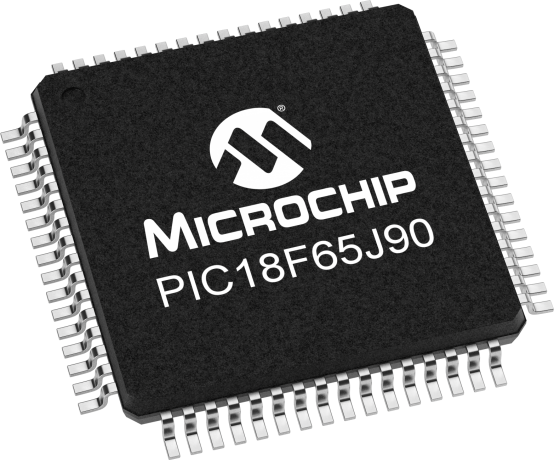

Product Images
