8-bit RISC microcontroller featuring 40MHz operation and 64KB FLASH memory. This integrated circuit offers 3.75KB RAM, 53 programmable I/Os, and 14 PWM channels. Interfaces include I2C, SPI, and dual UART/USART. Packaged in a 64-pin TQFP with lead-free construction, it operates from 4.2V to 5.5V and supports an extended temperature range of -40°C to 85°C. On-chip peripherals include a watchdog timer and 12 A/D converter channels.
Frequency40MHz
PackageTQFP
Current4mA
Quick Jump:
Technical Specifications
Microchip PIC18F6621-I/PT technical specifications.
General
Access Time
40us
Address Bus Width
8b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Lead Pitch
0.5mm
Length
10mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
64KB
Memory Type
FLASH
Min Supply Voltage
4.2V
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
8
Number of Ethernet Channels
1
Number of I/Os
53
Number of I2C Channels
1
Number of Programmable I/O
53
Number of PWM Channels
14
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
External
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
3.75KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18F
Supply Current
4mA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F6621-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F6621-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

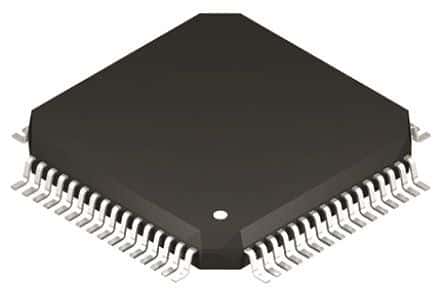

Product Images
