8-bit Flash microcontroller featuring a PIC core architecture, operating at up to 40MHz. This surface-mount device, housed in a TQFP package, offers 54 programmable I/O pins and 5 timers/counters. Integrated peripherals include I2C, SPI, UART, USART interfaces, along with Brown-out Detect/Reset, POR, PWM, WDT, and HLVD. It supports an operating supply voltage of 5V, with a range from 4.2V to 5.5V, and boasts 96KB of FLASH memory and 3936B of RAM. Designed for operation between -40°C and 125°C, this RoHS compliant component is suitable for demanding applications.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F6628-E/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Interface
I2C, SPI, UART, USART
Max Frequency
40MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
96KB
Memory Type
FLASH,
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of Programmable I/O
54
Number of Timers/Counters
5
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
3936B
RoHS Compliant
Yes
Series
PIC® 18F
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F6628-E/PT Datasheet
Download the complete datasheet for Microchip PIC18F6628-E/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

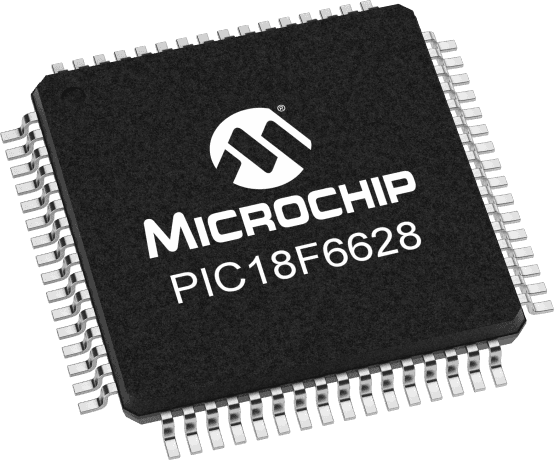

Product Images
