8-bit FLASH microcontroller featuring an 8b data bus width and a maximum operating frequency of 48MHz. This surface mount device offers 96KB of FLASH memory and 3904B of RAM, with 49 programmable I/Os. Integrated peripherals include I2C, SPI, USB, and UART interfaces, along with 14 PWM channels and 5 timers/counters. Packaged in a 64-pin TQFP (10x10mm, 1.05mm height), this RoHS compliant component operates from 2V to 3.9V.
Frequency48MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F66J55-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Density
96KB
Frequency
48MHz
Height
1.05mm
Interface
I2C, SPI, USB, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.9V
Memory Size
96KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
49
Number of I2C Channels
2
Number of Programmable I/O
49
Number of PWM Channels
14
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
3904B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18J
Termination
SMD/SMT
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F66J55-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F66J55-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

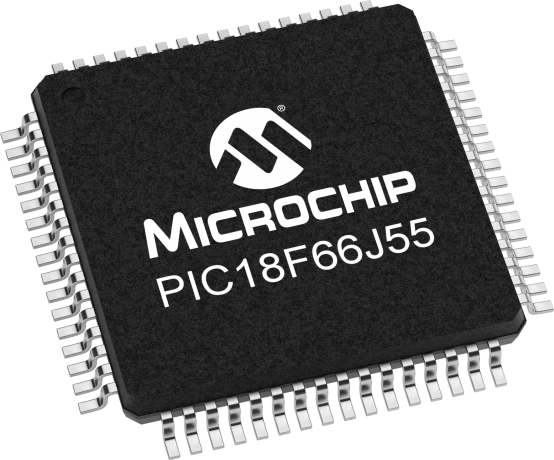

Product Images
