8-bit microcontroller featuring a 64MHz core clock speed and 64KB of FLASH memory. This integrated circuit offers 54 programmable I/O pins, 11 analog-to-digital converter channels, and multiple communication interfaces including I2C, SPI, USART, UART, LIN, and CAN. Operating within a supply voltage range of 1.8V to 5.5V, it boasts a maximum power dissipation of 1W and an operating temperature range of -40°C to 125°C. The component is housed in a 64-pin TQFP package with dimensions of 10mm x 10mm x 1.05mm and is lead-free and RoHS compliant.
Frequency64MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC18F66K80-E/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Height
1.05mm
Interface
I2C, SPI, USART, UART, LIN, CAN
Lead Free
Lead Free
Length
10mm
Max Frequency
64MHz
Max Operating Temperature
125°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
64KB
Memory Type
FLASH
Min Operating Temperature
40°C
Min Supply Voltage
1.8V
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
54
Number of I2C Channels
1
Number of Programmable I/O
54
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
2
Packaging
Tray
Radiation Hardening
No
RAM Size
3648B
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F66K80-E/PT Datasheet
Download the complete datasheet for Microchip PIC18F66K80-E/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

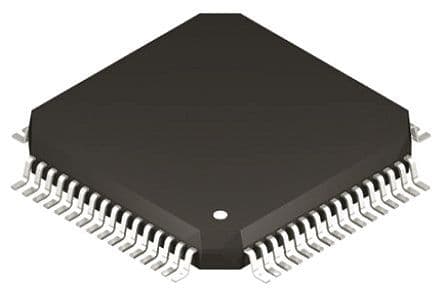

Product Images
