8-bit microcontroller featuring 128KB FLASH memory and 3936B RAM, operating at up to 40MHz. This surface mount device offers 54 programmable I/O pins and supports I2C, SPI, and UART interfaces. Integrated peripherals include multiple timers, 14 PWM channels, and a watchdog timer. Packaged in a 64-pin TQFP with dimensions of 10mm x 10mm x 1.05mm, it operates from 4.2V to 5.5V and is lead-free and RoHS compliant.
Frequency40MHz
PackageTQFP
Current1.3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F6722-I/PT technical specifications.
General
Access Time
40us
Address Bus Width
8b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Density
128KB
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Lead Pitch
0.5mm
Length
10mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
8
Number of I/Os
54
Number of I2C Channels
2
Number of Programmable I/O
54
Number of PWM Channels
14
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
3936B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1.3mA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F6722-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F6722-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

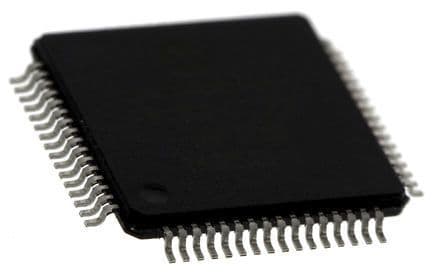

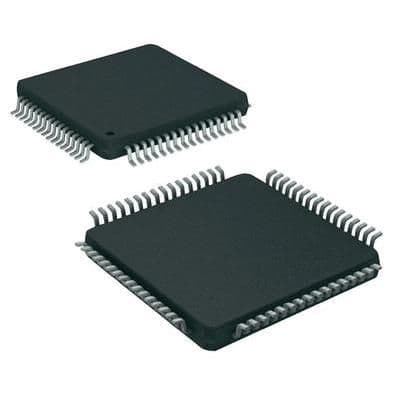

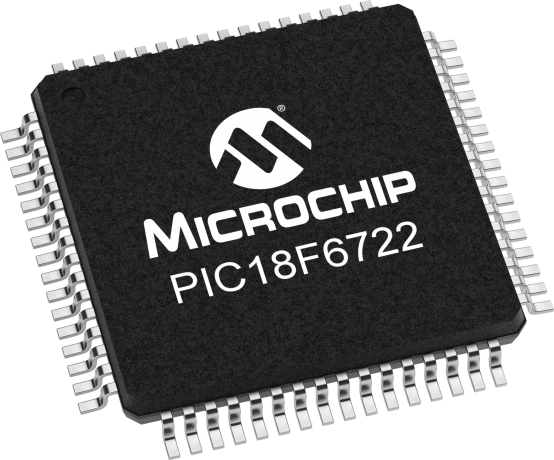

Product Images
