8-bit FLASH microcontroller featuring an 8b data bus and a maximum operating frequency of 48MHz. This surface mount device, housed in a 64-pin TQFP package (10mm x 10mm, 1.05mm height), offers 128KB of FLASH memory and 3904B of RAM. It supports I2C, SPI, and UART/USART interfaces, with 52 I/O pins and 68 programmable I/O pins. Operating from 2V to 3.9V, this RoHS compliant microcontroller includes peripherals such as Brown-out Detect/Reset, POR, PWM, WDT, LVD, and 5 timers/counters.
Frequency48MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F67J11-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
48MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.9V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
15
Number of Bits
8
Number of I/Os
52
Number of I2C Channels
2
Number of Programmable I/O
68
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
3904B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F67J11-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F67J11-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

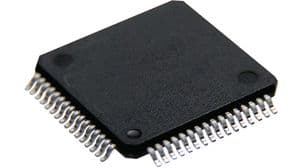

Product Images
