8-bit PIC microcontroller featuring 128KB FLASH memory and 3808B RAM. Operates at a maximum frequency of 41.667MHz with an 8-bit data bus width. Offers extensive connectivity with I2C, SPI, Ethernet, and UART interfaces, alongside 39 programmable I/Os and 14 PWM channels. Packaged in a 64-pin TQFP (10x10mm, 1mm height) for surface mounting, this lead-free component supports a wide operating temperature range of -40°C to 85°C. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer.
Frequency41.667MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F67J60-I/PT technical specifications.
General
Access Time
42us
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Density
128KB
Frequency
41.667MHz
Height
1.05mm
Interface
I2C, SPI, Ethernet, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
41.667MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.9V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of Ethernet Channels
1
Number of I/Os
39
Number of I2C Channels
1
Number of Programmable I/O
39
Number of PWM Channels
14
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
3808B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18J
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F67J60-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F67J60-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

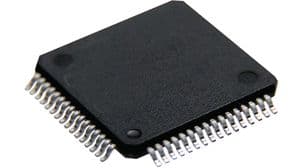

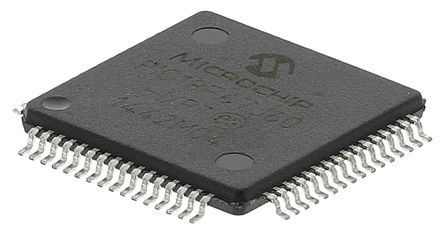

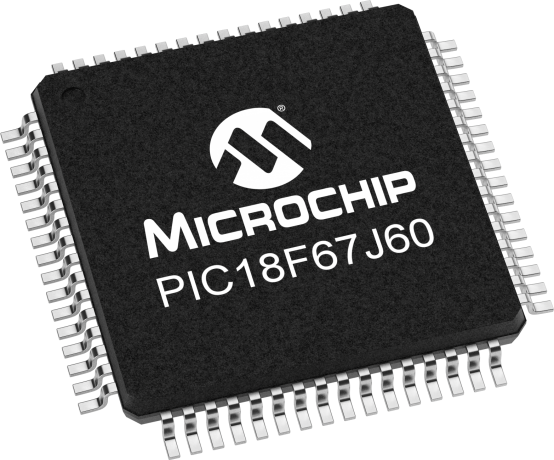

Product Images
