The PIC18F67K22-E/MR is a 64MHz 8-bit PIC microcontroller with 128KB of FLASH memory. It operates over a temperature range of -40°C to 125°C and is supplied with a voltage between 1.8V and 5.5V. The device features 53 programmable I/Os, 11 timers/counters, and a watchdog timer. It is available in a lead-free QFN-64 package and is RoHS compliant.
Frequency64MHz
PackageQFN EP
Quick Jump:
Technical Specifications
Microchip PIC18F67K22-E/MR technical specifications.
General
| Package/Case | QFN EP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 64MHz |
| Interface | I2C, SPI, UART, USART, LIN |
| Max Frequency | 64MHz |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 128KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of I/Os | 53 |
| Number of Programmable I/O | 53 |
| Number of Timers/Counters | 11 |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RAM Size | 4KB |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC18F67K22-E/MR Datasheet
Download the complete datasheet for Microchip PIC18F67K22-E/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

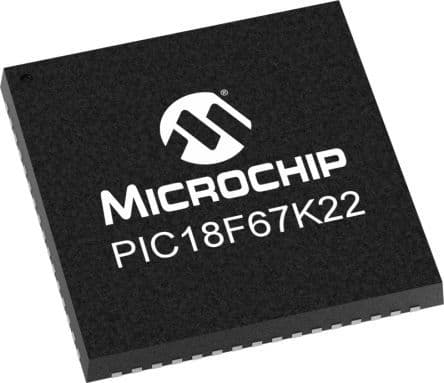

Product Images
