8-bit FLASH microcontroller featuring an 8b data bus width and a 40MHz maximum operating frequency. This surface mount device offers 32KB of FLASH memory and 2KB of RAM, with 67 programmable I/O pins. Integrated peripherals include I2C, SPI, and UART/USART interfaces, along with multiple timers/counters, PWM channels, and an A/D converter with 12 channels. The TQFP package measures 12mm x 12mm with a 1.05mm height and operates within a 2V to 3.6V supply voltage range.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F85J90-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Density
32KB
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
12mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
8
Number of I/Os
67
Number of I2C Channels
1
Number of Programmable I/O
67
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
119
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, LCD, I2C
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18J
Termination
SMD/SMT
Watchdog Timer
Yes
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F85J90-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F85J90-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

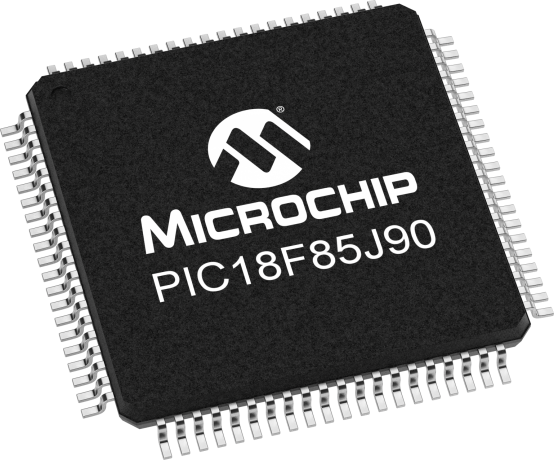

Product Images
