8-bit FLASH microcontroller featuring a PIC core architecture, operating at a maximum frequency of 40MHz. This surface mount device offers 64KB of FLASH memory and 3936B of RAM, with 70 programmable I/Os. Integrated peripherals include I2C (2 channels), SPI (2 channels), UART (2 channels), USART, EBI/EMI, 16 A/D converter channels, and 14 PWM channels. The TQFP package measures 12mm x 12mm with a 1.05mm height, supporting a supply voltage range of 4.2V to 5.5V and operating between -40°C and 85°C.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F8622-I/PT technical specifications.
General
Access Time
40us
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Density
64KB
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART, EBI/EMI
Lead Free
Lead Free
Length
12mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
8
Number of I/Os
70
Number of I2C Channels
2
Number of Programmable I/O
70
Number of PWM Channels
14
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
119
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
3936B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Watchdog Timer
Yes
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F8622-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F8622-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

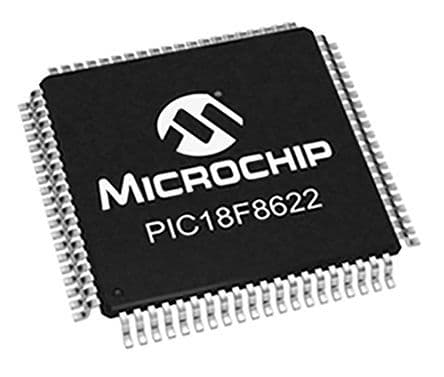

Product Images
