8-bit FLASH microcontroller featuring an 8b data bus width and a 40MHz maximum operating frequency. This surface mount device offers 64KB of FLASH memory and 2KB of RAM, with 66 programmable I/O pins. Integrated peripherals include multiple PWM, I2C, SPI, and UART channels, alongside 15 A/D converter channels. Operating from 2V to 3.6V, this RoHS compliant microcontroller is housed in a 12mm x 12mm x 1.05mm TQFP package.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F86J10-I/PT technical specifications.
General
Access Time
40us
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Density
64KB
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART, EBI/EMI
Lead Free
Lead Free
Length
12mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
15
Number of Bits
8
Number of I/Os
66
Number of I2C Channels
2
Number of Programmable I/O
66
Number of PWM Channels
14
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Package Quantity
119
Packaging
Tray
Peripherals
PWM, I2C
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Watchdog Timer
Yes
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F86J10-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F86J10-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

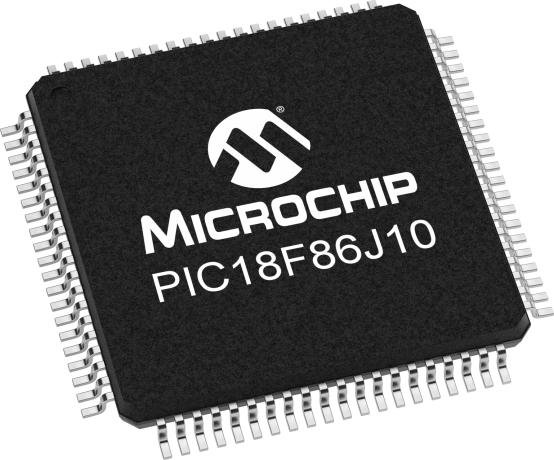

Product Images
