64MHz, 8-bit PIC microcontroller featuring 64KB FLASH memory and 4KB RAM. This surface mount device offers 69 programmable I/O pins and supports I2C, SPI, UART, USART, and EBI/EMI interfaces. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, WDT, and LVD. With 24 ADC channels and 11 timers/counters, it operates from -40°C to 85°C in a 12mm x 12mm TQFP package.
Frequency64MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F86K22T-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Height
1.05mm
Interface
I2C, SPI, UART, USART, EBI/EMI
Length
12mm
Max Frequency
64MHz
Max Operating Temperature
85°C
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of ADC Channels
24
Number of I2C Channels
2
Number of Programmable I/O
69
Number of SPI Channels
2
Number of Timers/Counters
11
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
RAM Size
4KB
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F86K22T-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F86K22T-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

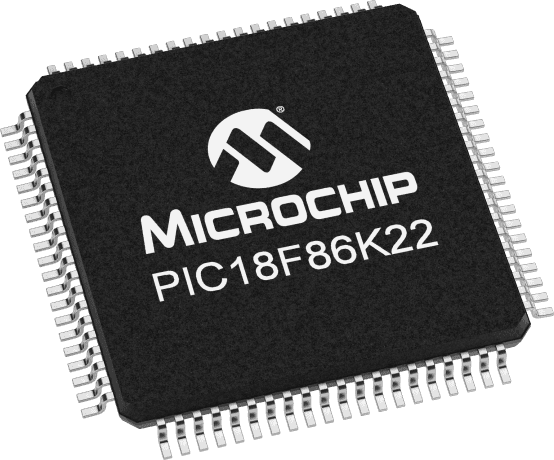

Product Images
