8-bit microcontroller featuring a PIC CPU core, operating at up to 64MHz. This CMOS device offers 64KB of FLASH memory, 4KB of RAM, and 69 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, USART, LIN interfaces, 10 PWM channels, 11 timers/counters, and a watchdog timer. Packaged in an 80-pin TQFP, it operates from 1.8V to 5.5V with a maximum power dissipation of 1W and an operating temperature range of -40°C to 85°C.
Frequency64MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC18F86K90-I/PTRSL technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Interface
I2C, SPI, UART, USART, LIN
Max Frequency
64MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
64KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of I/Os
69
Number of Programmable I/O
69
Number of PWM Channels
10
Number of Timers/Counters
11
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F86K90-I/PTRSL Datasheet
Download the complete datasheet for Microchip PIC18F86K90-I/PTRSL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

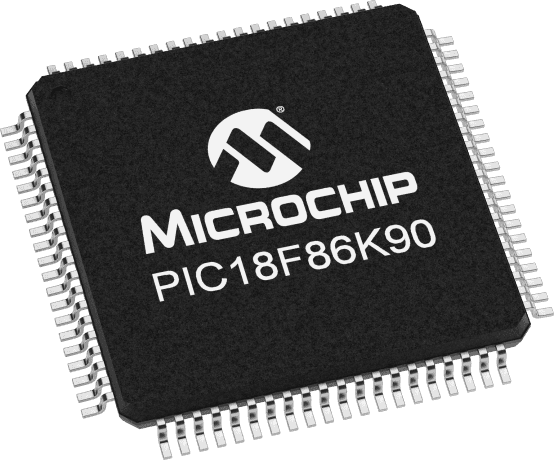

Product Images
