PIC18F87J10-I/PT

Datasheet

8-Bit 40MHz FLASH MCU, 128KB, TQFP-80, I2C, SPI, UART

Microchip

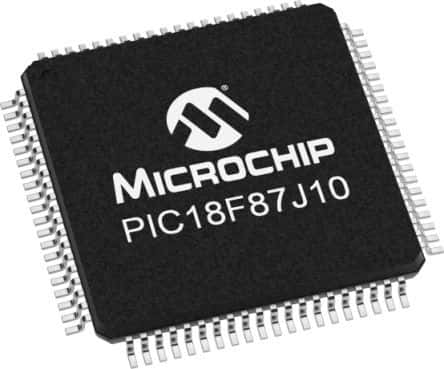

PIC18F87J10-I/PT

Name: PIC18F87J10-I/PT Microchip
Brand: Microchip
SKU: PIC18F87J10-I/PT

8-Bit 40MHz FLASH MCU, 128KB, TQFP-80, I2C, SPI, UART

8-bit FLASH microcontroller featuring a PIC core architecture, operating at up to 40MHz. This surface mount device offers 128KB of FLASH memory and 3936B of RAM, with 66 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, USART, EBI/EMI interfaces, 15 A/D converter channels, and 14 PWM channels. Packaged in a 12mm x 12mm TQFP with a 1.05mm height, it supports a supply voltage range of 2V to 3.6V and operates from -40°C to 85°C.

Frequency40MHz

PackageTQFP

MountingSurface Mount

Quick Jump:

Chat with Datasheet

Technical Specifications

Microchip PIC18F87J10-I/PT technical specifications.

General

Access Time	40us
Package/Case	TQFP
Core Architecture	PIC
Data Bus Width	8b
Density	128KB
Frequency	40MHz
Height	1.05mm
Interface	I2C, SPI, UART, USART, EBI/EMI
Lead Free	Lead Free
Length	12mm
Max Frequency	40MHz
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Power Dissipation	1W
Max Supply Voltage	3.6V
Memory Size	128KB
Memory Type	FLASH,
Min Supply Voltage	2V
Mount	Surface Mount
Number of A/D Converters	1
Number of ADC Channels	15
Number of Bits	8
Number of I/Os	66
Number of I2C Channels	2
Number of Programmable I/O	66
Number of PWM Channels	14
Number of SPI Channels	2
Number of Timers/Counters	5
Number of UART Channels	2
Oscillator Type	Internal
Package Quantity	119
Packaging	Tray
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening	No
RAM Size	3936B
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	PIC® 18J
Termination	SMD/SMT
Watchdog Timer	Yes
Width	12mm
